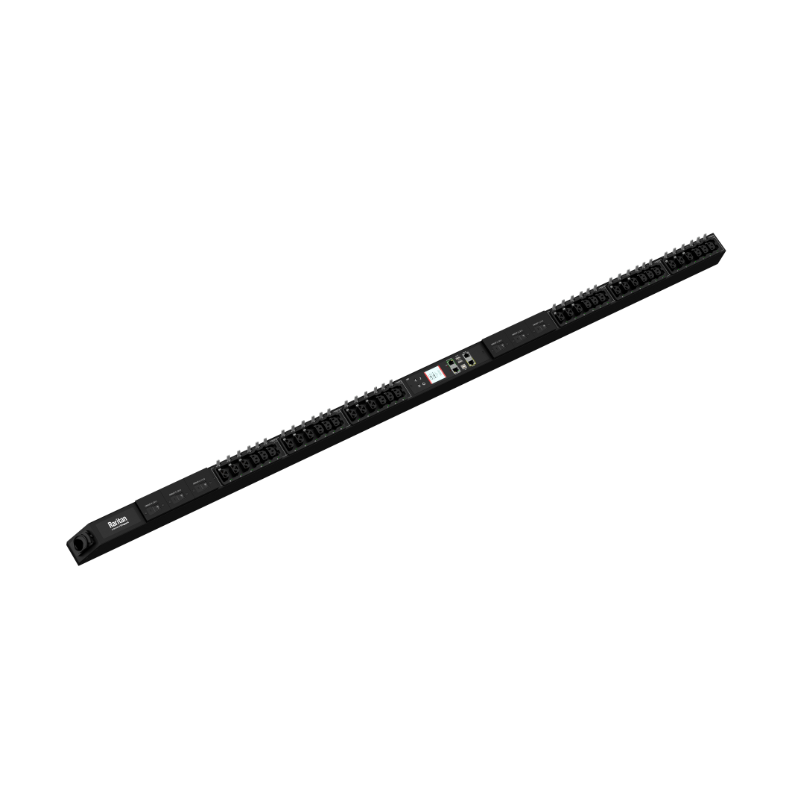

PDU 36 Outlets PX4-5072-E7V2 Outlet Metered and Switched

Please contact us if you are interested

Advanced PDU with precision energy monitoring and intelligent management

Ensure maximum efficiency and reliability in your data center with this advanced PDU, designed for accurate energy monitoring and comprehensive power management. Featuring Class 0.5 metering accuracy, it provides real-time insights into voltage (V), current (A), active power (kW), real power (kVA), energy consumption (kWh), and power factor.

Comprehensive Metering & Power Quality Monitoring
This PDU supports metering at the input line, branch circuit breaker, and individual output receptacle, allowing for complete control over power distribution. Advanced Power Quality Monitoring detects voltage and current harmonic distortion, distortion power factor, voltage dips and swells, neutral current fluctuations, inrush currents, and crest factor, helping to maintain a stable power environment.

Intelligent Power Distribution & Remote Management
Equipped with remote outlet switching, this PDU enables seamless power management from anywhere. The alternating branch outlet power distribution ensures balanced loads and reduces risk of overloading. The hot-swappable controller allows for component replacement without downtime, while environmental sensor compatibility supports monitoring of temperature, humidity, airflow, differential pressure, dust/particles, water leaks, motion detection, vibration, dry contact, and contact closure.

Scalability & Networking Capabilities
For large-scale infrastructure, this PDU supports PDU Linking, connecting up to 8 PDUs, where the Primary PDU manages power and status data from expansion units. Redundant power ensures uptime, even if the Primary PDU fails. With cascading, up to 32 PDUs can be managed through a single Ethernet port or 16 via USB, minimizing IP address usage through port forwarding.

Networking options include 10/100/1000 Base-T Ethernet, redundant secondary Ethernet, and optional WiFi (802.11 a/b/g/n), ensuring seamless integration into any IT environment. Remote management is supported via HTTP(s), SSH (CLI), Telnet, RS-232 (Serial), SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, and Redfish API.

User-Friendly Onboard Display

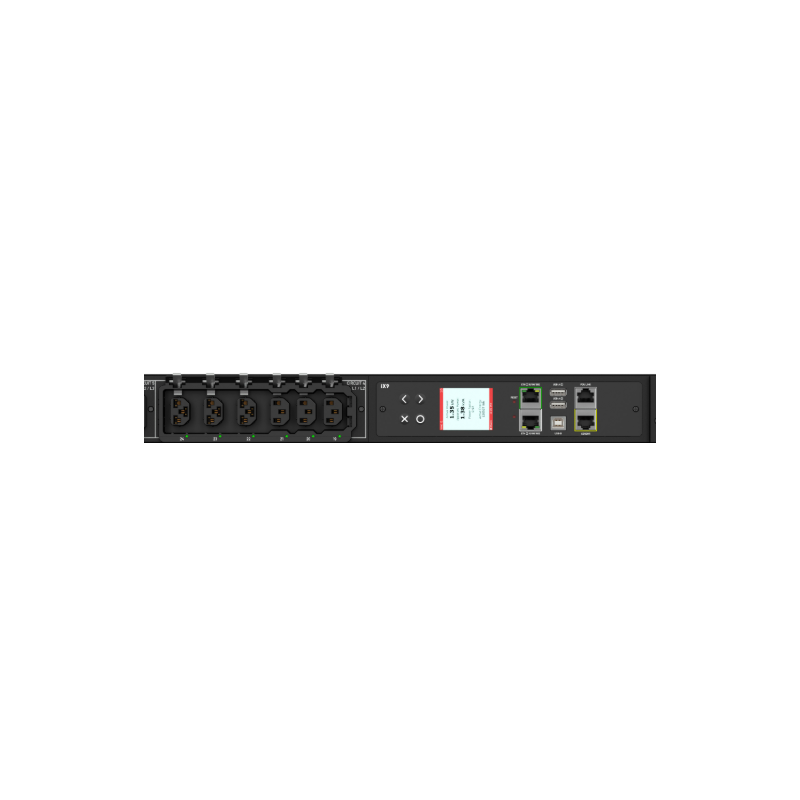

The color LCD matrix display provides real-time data on voltage, current, and active power, with monitoring available per line, per breaker, or per outlet. Alarm notifications and configuration settings (name, ratings, IP/networking info) are easily accessible, and the auto-flip orientation ensures optimal readability.

Specifications

Input

Input Plug: CS8365 3P+G 50A

Nominal Voltage: 208V

Maximum Input Current: 50A

Rated Input Current: 40A

Power Capacity: 14.4VA

Cord Length: 3m

Output

Receptacles (Output Connections): (18) C13, (18) Cx

Overload Protection: 6

Physical

Dimensions (WxDxH): 56mm x 65mm x 1780mm

Unit Weight: 12.2 kg

Shipping Weight: 14.8 kg

Mounting: G4-HOLDER-FOR-ZU

Environmental

Operating Temperature/Environment: 60 C

Operating Relative Humidity: 85%

Operating Elevation: 0-10000ft

Conformance

Regulatory Approvals: UL
