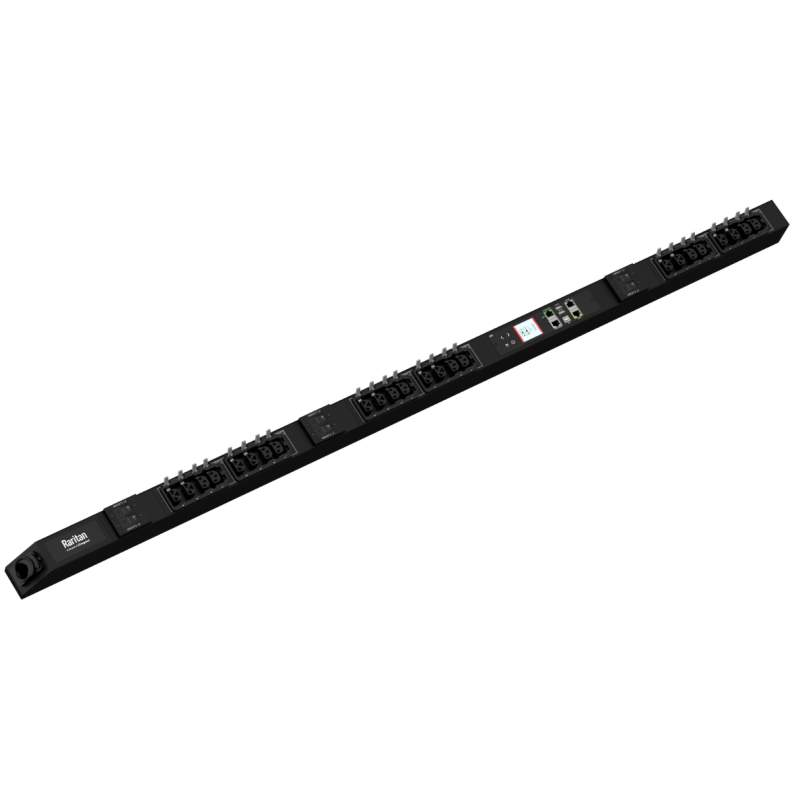

PDU 24 Outlets PX4-5550-E7V2 Outlet Metered and Switched

Please contact us if you are interested

This advanced PDU provides accurate energy metering and comprehensive monitoring to ensure maximum efficiency and reliability in data centers. With class 0.5 metering accuracy, this unit delivers real-time insights into voltage (V), current (A), active power (kW), apparent power (kVA), energy consumption (kWh), and power factor. This helps optimize energy usage and prevents unnecessary costs.

The PDU supports metering per input line, branch circuit breaker, and individual outlet, giving you full control over power distribution. Additionally, the unit features advanced Power Quality Monitoring, including voltage and current harmonic distortion, power factor analysis, and detection of voltage dips and swells. And it includes monitoring neutral current, current inrush, crest Factor

Designed for maximum flexibility and security, this PDU features a hot-swappable controller that allows for component replacement without power interruption. The remote outlet switching option enables power connections to be managed remotely, while alternating branch distribution ensures balanced loads and prevents overloads.

For seamless integration into IT infrastructures, this PDU offers extensive networking capabilities, including gigabit Ethernet, optional WiFi, and support for protocols such as HTTP(s), SSH, SNMP v2/v3, MODBUS-TCP, and Redfish API.

This PDU supports linking up to 8 units using the PDU Link Port. The Primary PDU gathers all power and status information from connected Expansion PDUs, ensuring unified management. Redundant power from the first expansion unit guarantees uptime even if the Primary PDU loses power.

For larger-scale deployments, cascading allows up to 32 PDUs to be physically connected under a single Ethernet port, or 16 PDUs via USB in bridging mode. Additionally, IP addresses can be saved using a single IP address with port forwarding for more efficient network management.

The PDU offers extensive networking capabilities, including 10/100/1000 Base-T Ethernet, redundant secondary Ethernet, and optional WiFi (802.11 a/b/g/n). These features ensure reliable remote access and seamless integration into any network infrastructure.

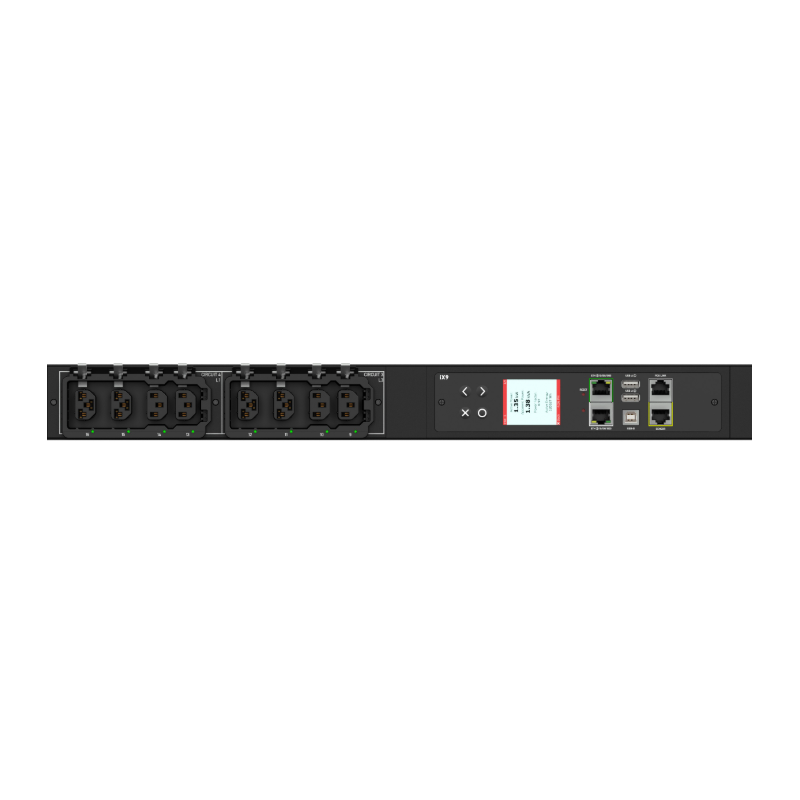

The integrated color LCD display provides immediate insights into voltage, current, and active power per line, breaker, and outlet. It also displays alarm notifications and configuration details, with an auto-flip orientation for optimal readability.

Specifications

Input

Input Plug: Nema L22-30P

Nominal Voltage: 415V

Maximum Input Current: 30A

Rated Input Current: 24A

Power Capacity: 17.3kVA

Cord Length: 3m

Output

Receptacles (Output Connections): (12) C13, (12) Cx

Overload Protection: 6

Physical

Dimensions (WxDxH): 56mm x 65mm x 1539mm

Unit Weight: 6.8 kg

Shipping Weight: 9.5 kg

Mounting: G4-HOLDER-FOR-ZU

Environmental

Operating Temperature/Environment: 60 C

Operating Relative Humidity: 85%

Operating Elevation: 0-10000ft

Conformance

Regulatory Approvals: UL
