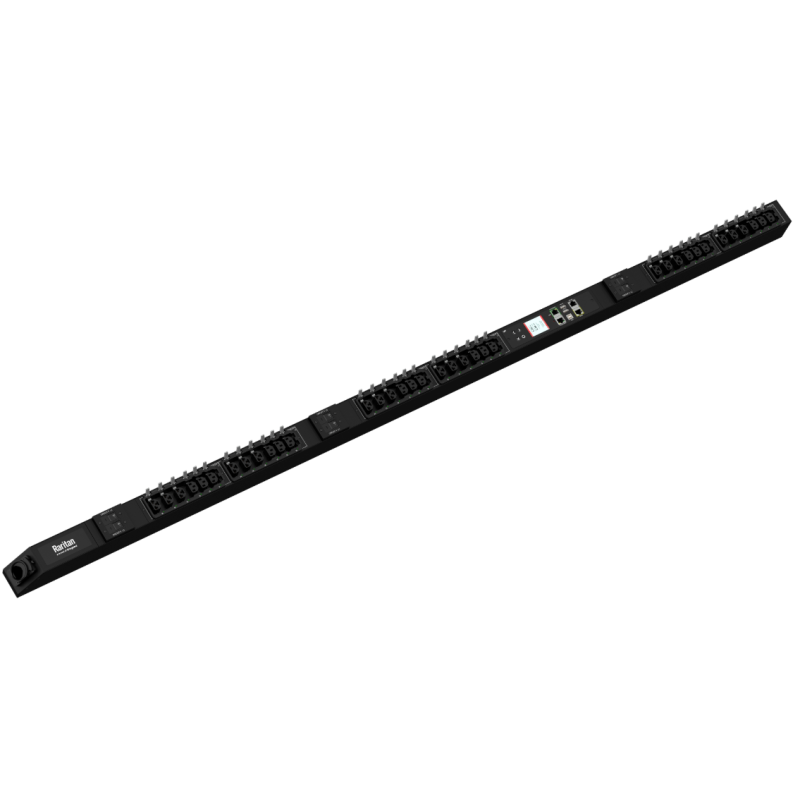

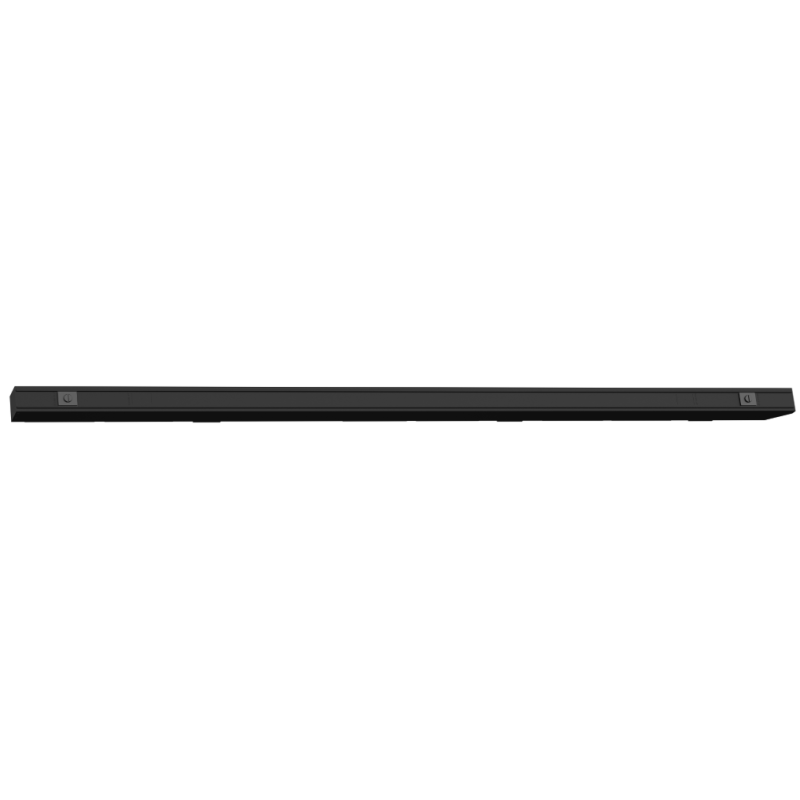

PDU 36 Outlets PX4-5851-E7V2 Outlet Metered and Switched

Please contact us if you are interested

Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy: Class 0.5 meter

Metering per input line: Yes

Metering per Branch Circuit Breaker: Yes

Metering per Output Receptacle: Yes

Remote Outlet Switching: Yes

Power Quality Monitoring: Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor

Outlet Power Distribution: Alternating Branch

Replaceable Controller: Yes, hot-swappable

Environmental Sensor Ready: Yes

Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.

PDU Linking: Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.

Cascading: Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.

Linking: Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.

Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Remote Management: HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API

Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.

Specifications

Input

Input Plug: NEMA L22-30P

Nominal Voltage: 415V

Maximum Input Current: 30A

Rated Input Current: 24A

Power Capacity: 17.3kVA

Cord Length: 3m

Output

Nominal Voltage: 208 - 240V

Receptacles (Output Connections): (18) C13, (18) Cx

Overload Protection: 6

Physical

Dimensions (WxDxH): 56mm x 65mm x 1780mm

Unit Weight: 7.7 kg

Shipping Weight: 11.3 kg

Shipping Dimensions: 1940 x 255 x 125 mm

Mounting: G4-HOLDER-FOR-ZU

Environmental

Operating Temperature/Environment: 60 C

Operating Relative Humidity: 85%

Operating Elevation: 0-10000ft

Conformance

Regulatory Approvals: UL

Warranty: Standard 2 years manufacturer warranty
